What are the main differences between graphene and graphite?

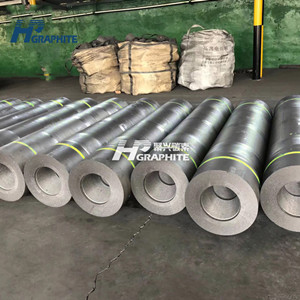

Although there is only little spelling difference between graphite and graphene, they are completely two different things. Today, let's introduce the difference between graphite and graphene, which is mainly reflected in what aspects. The information of high quality graphite electrodes. We will explain them one by one from the aspects of use, classification, application and other aspects. If you want to know, let's learn together with this small series!

I Graphite

1. Use of graphite

Graphite is one of the crystalline minerals of carbon element. It has excellent properties such as lubricity, chemical stability, high temperature resistance, conductivity, special thermal conductivity, plasticity, coating and so on. Graphite is mainly used as refractory in metallurgical industry; Used as mold and antirust coating in foundry industry; In the electrical industry, it is used to produce carbon electrodes, electrode carbon rods and batteries. The graphite emulsion can be used as TV picture tube coating, and the carbon products can be used in generators, motors, communication equipment and many other aspects; In the machinery industry, it is used as a lubricant for aircraft, ships, trains and other high-speed machinery; In the chemical industry, it is used to manufacture all kinds of anti-corrosion vessels and equipment; Used used as neutron moderating agent and protective material in atomic reactor in nuclear industry; In the aerospace industry, it can be used as the throat lining of rocket engine tail nozzle, heat insulation and heat-resistant materials of rockets and missiles, as well as radio connection signals and conductive structural materials on man-made satellites. In addition, graphite is also a polishing agent and antirust agent for glass and papermaking in light industry, and a raw material for manufacturing pencils, ink, black paint, ink and artificial diamond.

2. Classification of graphite

Graphite minerals with different crystalline forms have different industrial values and uses. In industry, natural graphite is divided into three types according to different crystalline morphology.

(1) Dense crystalline graphite

Dense crystalline graphite is also called massive graphite. Such graphite crystals are obvious and visible to the naked eye. The crystals are arranged disorderly and in a dense massive structure. This kind of graphite is characterized by high grade. Generally, the carbon content is 60 ~ 65%, sometimes up to 80 ~ 98%, but its plasticity and greasiness are not as good as flake graphite.

(2) Flake graphite

Graphite crystal is scaly, which is metamorphosed under high-strength pressure. It can be divided into large scale and fine scale. This kind of graphite ore is characterized by low grade, but it is one of the best floatable ores in nature. High grade graphite concentrate can be obtained through multiple grinding and multiple beneficiation. The floatability, lubricity and plasticity of this kind of graphite are superior to other types of graphite; Therefore, it has the greatest industrial value.

(3) Cryptocrystalline graphite

Cryptocrystalline graphite, also known as amorphous graphite or earthen graphite, is an aggregate of microcrystalline graphite. This kind of graphite is characterized by earthy surface, lack of luster and poor lubricity. High grade, generally 60 ~ 80%, but the ore separability is poor.

II Graphene

Graphene is a two-dimensional crystal composed of closely packed carbon atoms. It is a single-layer thin crystal in graphite. It is known that it has the highest strength, the best toughness, the lightest weight, the highest light transmittance and the best conductivity.

1. Characteristics of graphene

Graphene is the thinnest material known at present. The single-layer graphene is only one carbon atom thick. Graphene with this thickness has many characteristics that graphite does not have.

(1) Extremely strong conductivity: the electrons in graphene have no mass. The movement speed of electrons exceeds that in other metal monomers or semiconductors, and can reach 1/300 of the speed of light. Therefore, graphene has super conductivity.

(2) Ultra-high strength: graphite is the softest mineral, and its Mohs hardness is only 1-2. However, after being separated into graphene with the thickness of one carbon atom, its performance will change suddenly. Its hardness will be higher than that of diamond with Mohs hardness of 10, but it has good toughness and can be bent.

(3) Super large specific surface area: because the thickness of graphene is only one carbon atom thick, that is 0.335 nm, graphene has a super large specific surface area. The ideal specific surface area of single-layer graphene can reach 2630 m²/g, while the specific surface area of ordinary activated carbon is 1500 m²/g. The super large specific surface area makes graphene a potential energy storage material.

2. Application of graphene

(1) Replace silicon to produce electronic products

Silicon has brought us into the digital age, but researchers are still eager to find some new materials to make integrated circuits smaller, faster and cheaper. Graphene has higher carrier mobility than silicon. It is a very excellent semiconductor material. The running speed of electrons in graphene can reach 1/300 of the speed of light, and only produces little heat. The global semiconductor crystalline silicon market is developing steadily. According to IEK's prediction, graphene can replace crystalline silicon in the chip field. If graphene replaces one tenth of crystalline silicon to make high-end integrated circuits, the market capacity will be at least more than 500 billion yuan.

(2) Graphene material additives

At present, some organizations add graphene to cement, paint, coating, plastic, ceramics, photovoltaic glass, cable and other materials to improve performance and increase strength, for more technical news contact us.
